GOLF CART SPECIFICATIONS |
||||||
---|---|---|---|---|---|---|

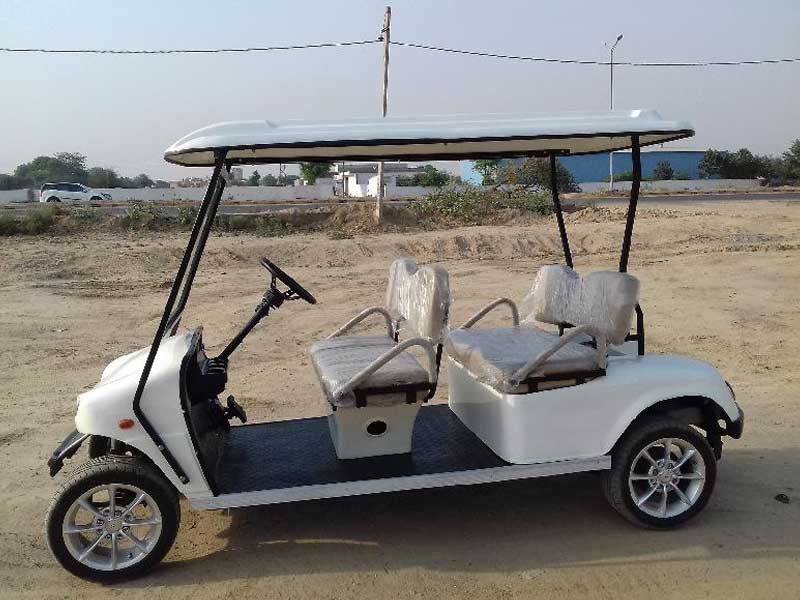

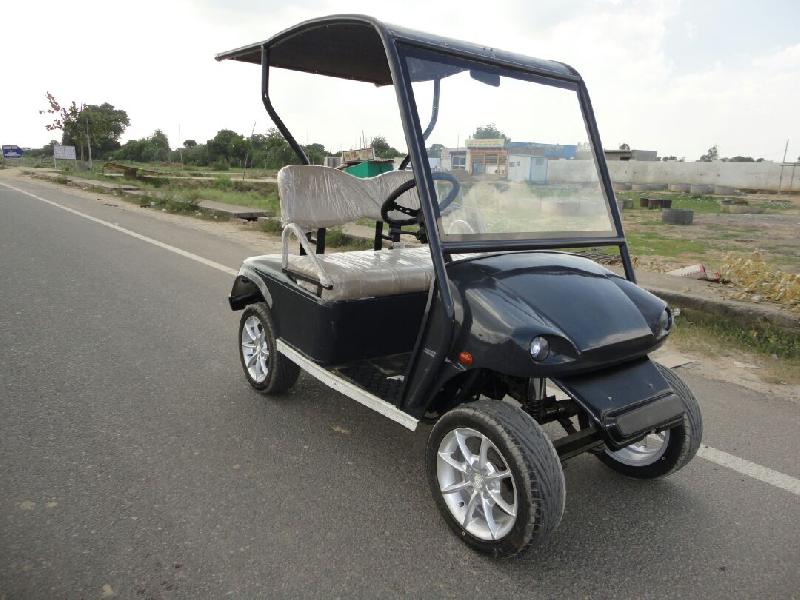

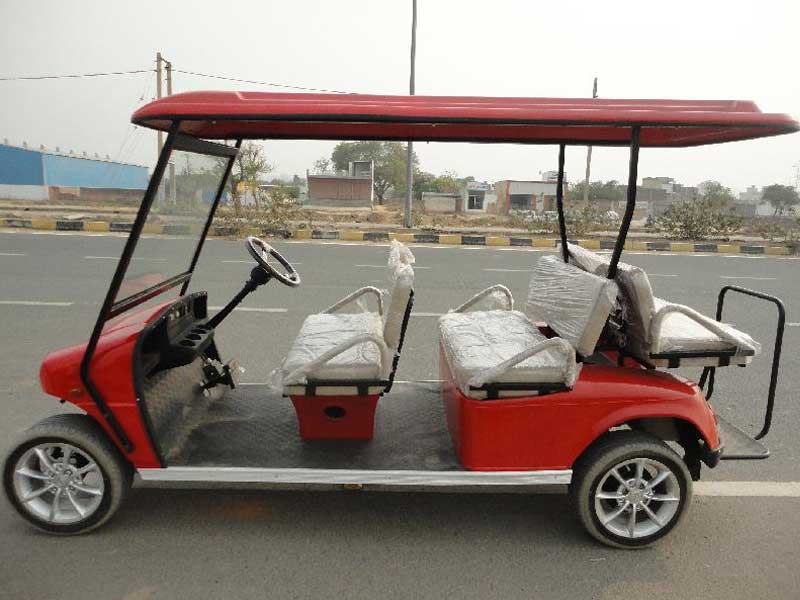

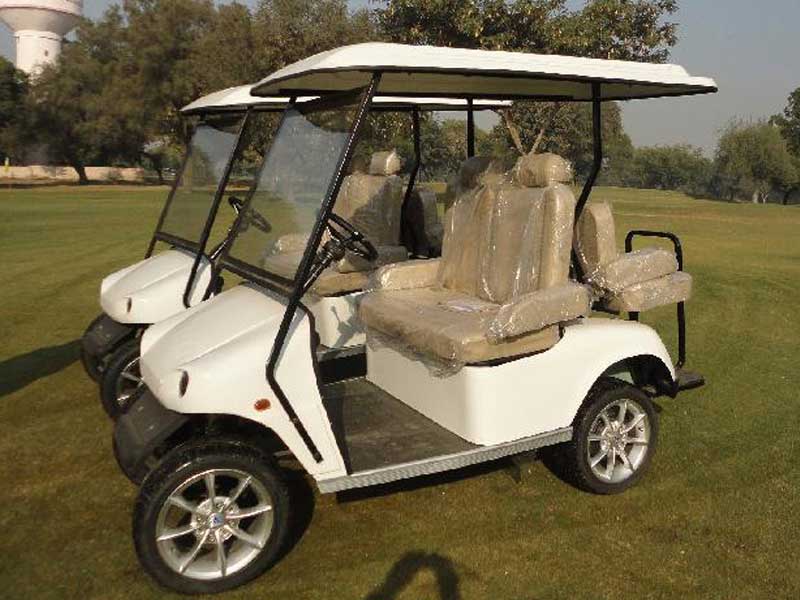

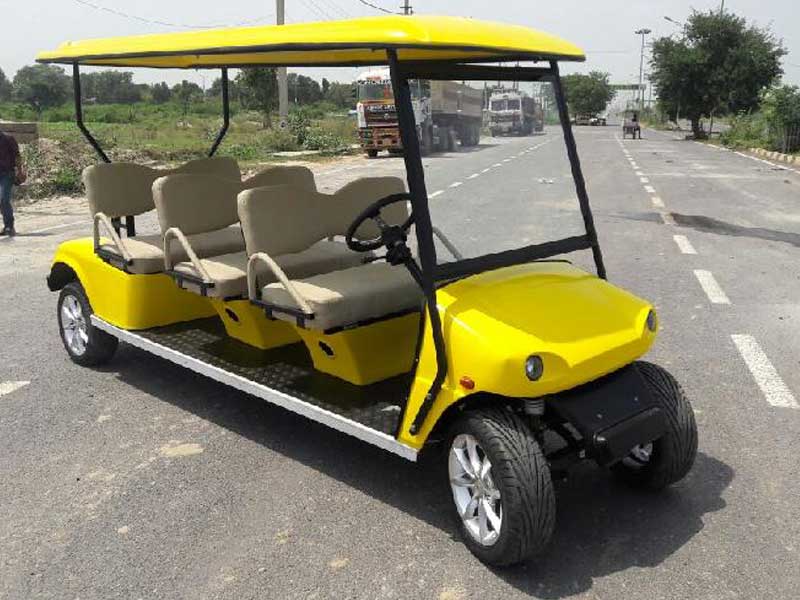

Series | 2 Seater | 4 Seater (2 Front, 2 Back) | 4 Seater (All Front) | 6 Seater (4 Front, 2 Back) | 6 Seater (All Front) | 8 Seater (6 Front, 2 Back) |
Model | AK-GC-02 | AK-GC-12 | AK-CITI-04 | AK-CITI-14 | AK-TRAVELLER-06 | AK-TRAVELLER-16 |
Motor (Watt / Volt / AC / DC) | 3.0 KW , 48Volt, A.C. | 4.0KW , 48Volt, A.C. | 4.0KW, 48Volt, A.C. | 4.0KW, 48Volt, A.C. | 4.0KW, 48Volt, A.C. | 4.0KW, 48Volt, A.C. |
Controller (Make - AC / DC) | A.C. Controller, Curtis make | A.C. Controller, Curtis make | A.C. Controller, Curtis make | A.C. Controller, Curtis make | A.C. Controller, Curtis make | A.C. Controller, Curtis make |
Battery (Make, Output / Volt) | Exide make, 4Nos. 12Volt 130Amps each, Lead Acid Batteries | Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries | Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries | Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries | Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries | Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries |
Battery Life | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles |
Charger (Make / Charge Type) | 48Volt 15Amps | 48Volt 15Amps | 48Volt 15Amps | 48Volt 15Amps | 48Volt 15Amps | Sirius Make, 48Volt 20Amps |
Seating Capacity (including driver) | 2 Passengers(All Front) | 4 Passengers (2Front + 2Back) | 4 Passengers (All Front) | 6 Passengers (4Front + 2Back) | 6 Passengers (All Front) | 8 Passengers (6Front + 2Back) |
Chassis | Tubular M.S. | Tubular M.S. | Tubular M.S. | Tubular M.S. | Tubular M.S. | Tubular M.S. |
Brake | Mechanical Drum Brakes | Mechanical Drum Brakes | Mechanical Drum Brakes | Mechanical Drum Brakes | Mechanical Drum Brakes | Mechanical Drum Brakes |
Body ( Structure) | Fibre | Fibre | Fibre | Fibre | Fibre | Fibre |
Tyre (Size) | 18x8.5-8/ 175x60Rx13 Tube Less Tyres | 18x8.5-8/ 175x60Rx13 Tube Less Tyres | 18x8.5-8/ 175x60Rx13 Tube Less Tyres | 18x8.5-8/ 175x60Rx13 Tube Less Tyres | 18x8.5-8/ 175x60Rx13 Tube Less Tyres | 18x8.5-8/ 175x60Rx13 Tube Less Tyres |
Rim | Normal / Alloy Wheels | Normal / Alloy Wheels | Normal / Alloy Wheels | Normal / Alloy Wheels | Normal / Alloy Wheels | Normal / Alloy Wheels |
Steering system (Manual / Auto / Power) | Right Hand Drive, Automotive Rack & Pinion | Right Hand Drive, Automotive Rack & Pinion | Right Hand Drive, Automotive Rack & Pinion | Right Hand Drive, Automotive Rack & Pinion | Right Hand Drive, Automotive Rack & Pinion | Right Hand Drive, Automotive Rack & Pinion |
Front suspension | Leaf Spring with Shock Absorbers | Leaf Spring with Shock Absorbers | Leaf Spring with Shock Absorbers | Leaf Spring with Shock Absorbers | Leaf Spring with Shock Absorbers | Leaf Spring with Shock Absorbers |
Rear suspension | Leaf Springs | Leaf Springs | Leaf Springs | Leaf Springs | Leaf Springs | Leaf Springs |
Curb Weight (kg) | 350Kgs | 470Kgs | 520Kgs | 550Kgs | 600Kgs | 620Kgs |
Load Capacity (kg) | 350Kgs | 400Kgs | 450Kgs | 500Kgs | 600Kgs | 700Kgs |
Dimensions (L x W x H) | 2500X1200X1900 | 2900X1200X1900 | 3100X1200X1900 | 3550X1200X1900 | 3900X1200X1900 | 4350X1200X1900 |
Ground Clearance (Full Load) | 130mm/160mm | 130mm/160mm | 130mm/160mm | 130mm/160mm | 130mm/160mm | 130mm/160mm |
Turning radius (mtr) | 3.5mtr | 3.5mtr | 4.5mtr | 4.5mtr | 5.5mtr | 5.5mtr |
Distance per charge (On Plain Surface) | 55-60kms | 55-60kms | 55-60kms | 50-55kms | 50-55kms | 45-50kms |
SpeedMax (full running load on Plain Surface) | 25KMPH | 25KMPH | 25KMPH | 25KMPH | 25KMPH | 25KMPH |
Capacity max climbing(full load) | 25% | 25% | 25% | 25% | 25% | 25% |
Warranty | One Year on Site | One Year on Site | One Year on Site | One Year on Site | One Year on Site | One Year on Site |
